A watch timing machine (timegrapher) measures the rate, amplitude, and beat error of a mechanical movement. For watchmakers, it's essential equipment. For collectors, it's somewhere between useful tool and over-spec hobby equipment depending on how deep you go. This guide covers what timing machines actually measure, which ones to consider, and the honest answer to whether you need one.
What a Timing Machine Measures
Three primary readings.
| Reading | What It Means | Typical Target |
|---|---|---|
| Rate | Seconds gained or lost per day | +/- 2 to 15 s/day depending on caliber |
| Amplitude | Angle of balance wheel swing | 270 to 315 degrees |
| Beat error | Symmetry of tick-tock spacing | Under 0.5 ms |
Rate tells you if the watch is running fast or slow. Amplitude tells you if the movement has adequate energy. Beat error tells you if the balance is properly centered. Together they give a snapshot of movement health.
Why Collectors Might Want One
Four use cases where owning a timegrapher makes sense.
Verifying service quality. Post-service, a timing machine tells you whether the watchmaker actually regulated the movement to spec. Useful leverage if work isn't up to standard.
Diagnosing rate drift. When a watch suddenly runs fast or slow, a timing machine quickly tells you whether the issue is magnetism, service-needing wear, or something else.
Pre-purchase inspection. Before buying a used watch from a private seller, a timegrapher reading shows whether the movement is running healthy.
Collector curiosity. Serious collectors with 10+ mechanical watches enjoy seeing their own pieces' performance data.
Why Most Collectors Don't Need One
Three honest reasons to skip.
Most issues don't need measurement. A watch that runs +20 seconds per day is obviously fast. You don't need a timegrapher to know that, and most fixes (demagnetization, winder TPD adjustment, service) don't require you to measure first.
Watchmakers provide readings free. Any service visit includes a timegrapher reading. For a quick check on a specific watch, most shops will run it for free or a nominal fee.
Smartphone apps are "good enough" for casual use. Apps using the phone's microphone detect beat sounds. Less accurate than dedicated hardware but fine for rough diagnostics.
Timing Machine Options
| Option | Price Range | Best For |
|---|---|---|
| Smartphone app | Free to $10 | Casual curiosity, rough checks |
| USB timegrapher (Weishi, NextimeLab) | $180 to $300 | Serious collectors, home use |
| Standalone timegrapher | $300 to $800 | Dedicated workspace, frequent use |
| Professional Witschi | $3,000 to $12,000 | Professional watchmakers |

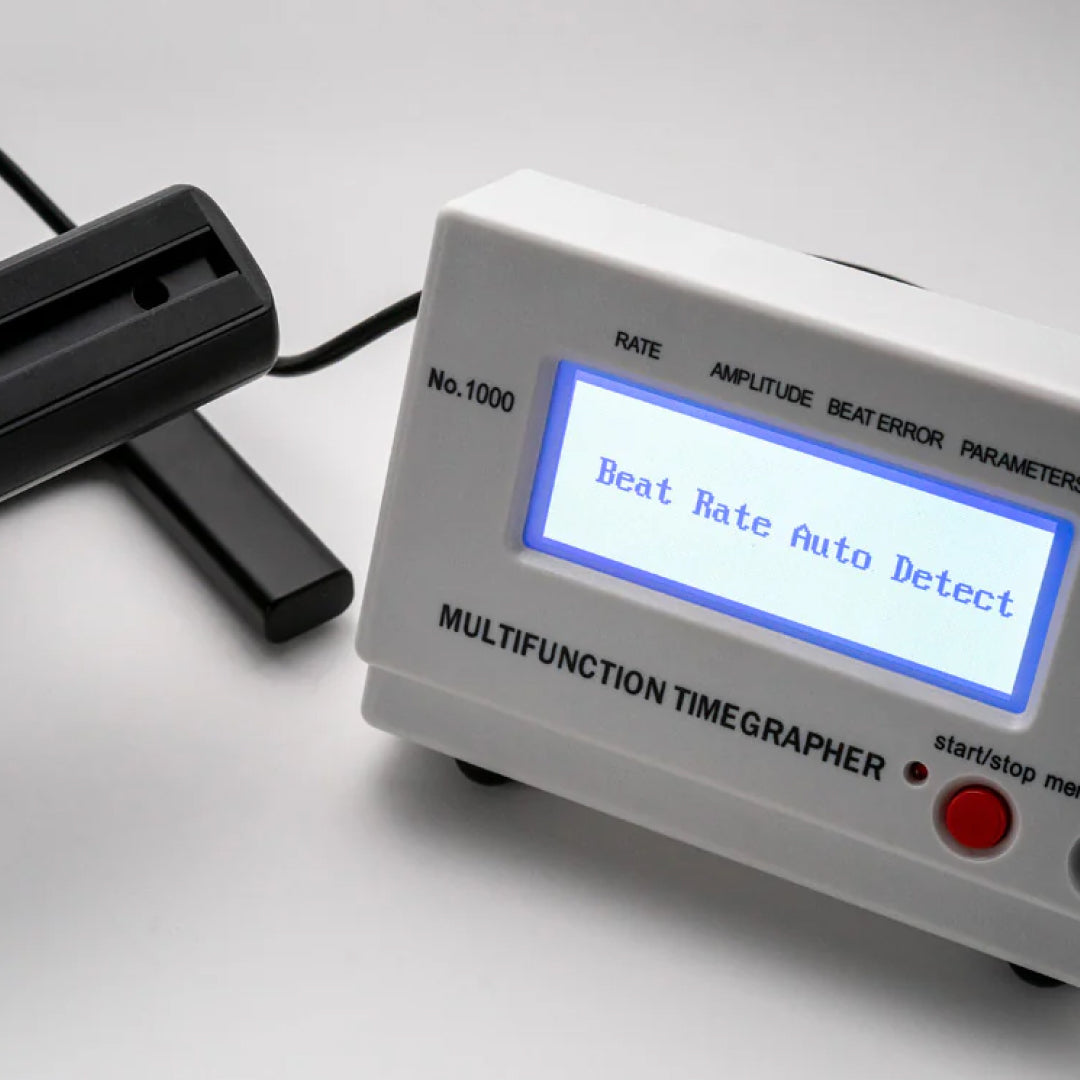

Recommended Entry Timegrapher: Weishi 1000 / 1900
The Weishi 1000 (older model) and Weishi 1900 (current) are the standard affordable timegraphers. Run around $180 to $250. Read all three key metrics. Designed for collectors, not professional watchmakers, so the interface is accessible.
Limitations. Not as sensitive as Witschi professional machines. Readings can vary slightly from day to day as the machine warms up. But for home use, the accuracy is sufficient.
How to Read Timing Machine Results
Rate
Shown as seconds per day, positive (fast) or negative (slow). Consumer automatic: +/- 15 s/day is within typical spec. COSC chronometer: +/- 4 to 6. Rolex Superlative Chronometer: +/- 2. See watch accuracy guide for context.
Amplitude
Measured in degrees. Healthy movement on full wind: 270 to 315 degrees flat dial up. Below 240 degrees indicates low amplitude — either partial wind, service needed, or movement defect. Above 320 degrees can indicate over-banking, a subtle defect.
Beat Error
Measured in milliseconds. Zero is perfect. Under 0.5 ms is excellent. Under 1.0 ms is acceptable. Over 1.0 ms means the balance isn't properly centered — watchmaker adjustment required.
Positional Testing
Accurate timing testing requires measuring in multiple positions because mechanical watches run differently based on orientation. Standard positions.
- Dial up (flat, face up)
- Dial down (flat, face down)
- Crown up (edge, crown at 12)
- Crown down (edge, crown at 6)
- Crown left (edge, crown at 3)
- Crown right (edge, crown at 9)
COSC certification tests five positions. For home use, three (dial up, dial down, crown down) give you 80 percent of the value.
When to Use a Timing Machine
Practical use patterns.
- After service to verify watchmaker regulation
- Before buying a used watch
- When a watch starts drifting noticeably
- Once a year on favorite pieces to track health
- After a winder setting change to confirm the watch is winding properly
What a Timing Machine Doesn't Tell You
Three things it misses.
Long-term accuracy. A watch reading +2 s/day on a timegrapher may gain more or less in actual wear. Timegrapher shows instantaneous rate, not cumulative.
Power reserve. Time the watch holds charge is separate from its running rate.
Water resistance. Not a timing machine function.
Frequently Asked Questions
Is a $200 timegrapher accurate enough?
For home use, yes. Weishi machines deliver measurements close to professional Witschi machines for casual collector use.
Can I use a smartphone app instead?
For rough checks, yes. For meaningful regulation verification, no. Apps have environmental sensitivity issues that dedicated hardware doesn't.
Should I measure my watches before and after service?
Yes, if you have a timegrapher. Before-and-after comparison shows the actual improvement from regulation.
Do I need to open the watch to measure?
No. Timegraphers measure through the case via microphone. Place the watch on the machine's mic rest.
Can timegraphers measure quartz watches?
No, not meaningfully. Quartz watches don't have a balance wheel producing the audible tick-tock timegraphers read.
How long does a measurement take?
30 to 60 seconds per position. Full 6-position test about 5 to 8 minutes including setup.
Where should I place the timegrapher?
Stable surface, away from noise sources (AC vents, speakers, running motors). Quiet room for best readings.
Decision: Buy or Skip
Buy if: you have 10+ mechanical watches, you enjoy measuring performance, or you're dealing with used-market purchases regularly.
Skip if: your collection is under 5 watches, you trust your watchmaker, or you prefer to treat watches as worn-not-measured.
For collectors who want to keep automatics wound at correct TPD (a prerequisite for accurate rate), browse the Winder Series. For the broader storage approach, see the watch storage checklist.
Related reading: watch accuracy guide, my watch gains or loses time, watch service intervals.
